Activate Coresight components in a Yocto environment for the Zedboard

 included in Tech notes / Embedded
   1517 words   8 minutes

Activate Coresight components - Software side - Method #1

Generate a core-image-minimal

Just follow https://pcotret.github.io/yocto-zedboard-101/. When booting this image:

1
2
3
4
5
6
7

Poky (Yocto Project Reference Distro) 3.0.3 zedboard-zynq7 /dev/ttyPS0

zedboard-zynq7 login: root
root@zedboard-zynq7:~# ls /sys/bus/
amba          container     event_source  i2c           media         nvmem         scsi          soc           usb
clockevents   cpu           gpio          iio           mmc           pci           sdio          spi           virtio
clocksource   edac          hid           mdio_bus      mmc_rpmb      platform      serio         ulpi          workqueue

No Coresight components 😢 ​

Customize a linux-xlnx-dev kernel uImage

The idea is to create a custom kernel where the support of Coresight components is enabled. Unfortunately, we cannot customize the usual core-image-minimal image with Yocto tools. Fortunately, we can do it on a linux-xlnx-dev image!

1

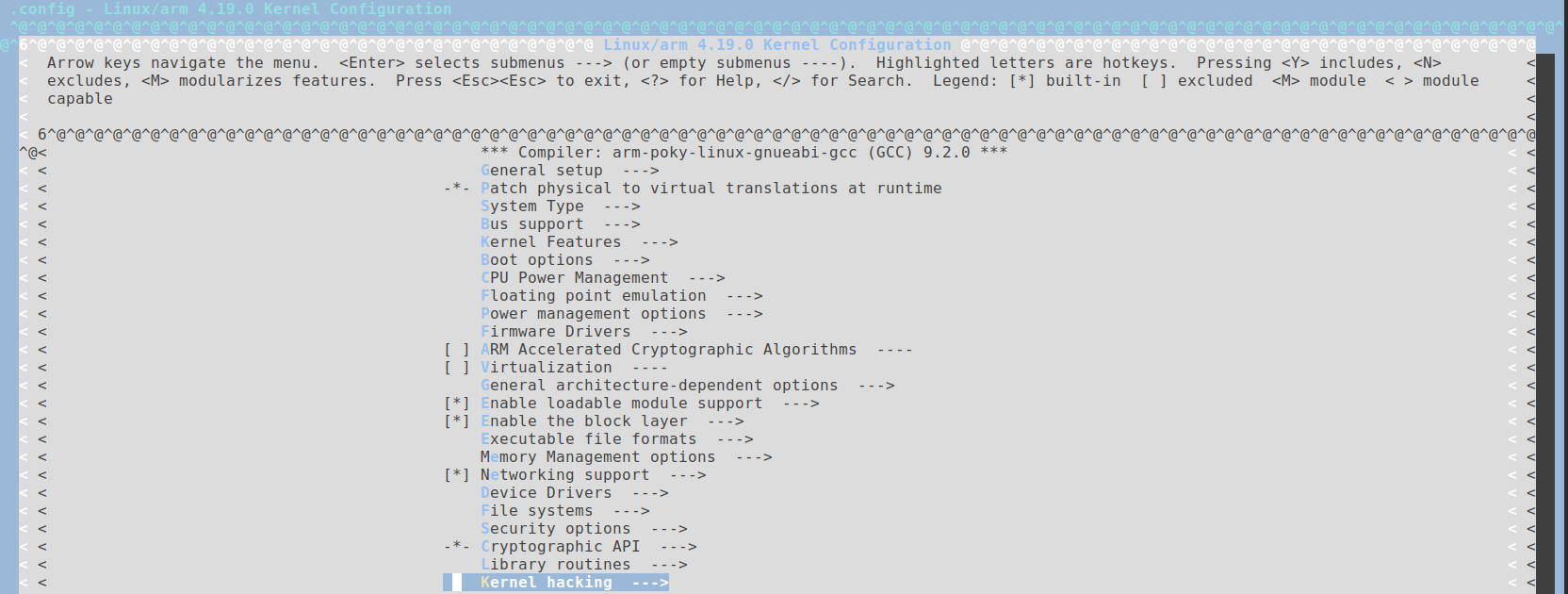

bitbake linux-xlnx-dev -c menuconfig

../img/menu.png

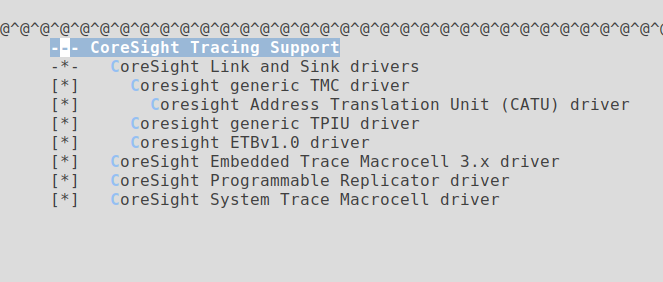

Go to Kernel hacking => CoreSight Tracing Support and enable the components you need (everything is enabled here). Then, save and exit.

../img/menu-coresight.png

1
2

bitbake linux-xlnx-dev -c compile -f
bitbake linux-xlnx-dev -c deploy

Now, you should have a new uImage file in build/tmp/deploy/images/zedboard-zynq7. Just replace it in the first partititon of the SD card and boot the board.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

Poky (Yocto Project Reference Distro) 3.0.3 zedboard-zynq7 /dev/ttyPS0

zedboard-zynq7 login: root
root@zedboard-zynq7:/sys/bus/coresight# ll
drwxr-xr-x    2 root     root           0 Jan  1  1970 devices
drwxr-xr-x    2 root     root           0 Jun 29 21:56 drivers
-rw-r--r--    1 root     root        4.0K Jun 29 21:56 drivers_autoprobe
--w-------    1 root     root        4.0K Jun 29 21:56 drivers_probe
--w-------    1 root     root        4.0K Jun 29 21:56 uevent
root@zedboard-zynq7:/sys/bus/coresight# ll devices/

We can see some Coresight support in the kernel but no devices detected… And, well, there are several reasons for that 😨

Activate Coresight components - Hardware side

Yocto meta-xilinx layer and Xilinx Linux kernel

During the compilation process, the meta-xilinx was cloned (zeus branch).

https://github.com/Xilinx/meta-xilinx/tree/zeus/meta-xilinx-bsp/conf/machine/zedboard-zynq7.conf:

1
2
3

require conf/machine/include/machine-xilinx-default.inc
# Skipping a few lines
KERNEL_DEVICETREE = "zynq-zed.dtb"

https://github.com/Xilinx/meta-xilinx/tree/zeus/meta-xilinx-bsp/conf/machine/include/machine-xilinx-default.inc:

1
2
3
4
5

# Kernel Configuration
XILINX_DEFAULT_KERNEL := "linux-xlnx"
XILINX_DEFAULT_KERNEL_microblaze := "linux-yocto"
XILINX_DEFAULT_KERNEL_zynqmp := "linux-yocto"
PREFERRED_PROVIDER_virtual/kernel ??= "${XILINX_DEFAULT_KERNEL}"

According to the BitBake files, it will clone the xlnx_rebase_v4.19 branch of the Linux kernel provided by Xilinx (https://github.com/Xilinx/linux-xlnx/tree/xlnx_rebase_v4.19).

https://github.com/Xilinx/meta-xilinx/tree/zeus/meta-xilinx-bsp/recipes-kernel/linux/linux-xlnx_2019.2.bb:

1
2

LINUX_VERSION = "4.19"
KBRANCH ?= "xlnx_rebase_v4.19"

Then, if we look at the device tree file common to all Zynq 7000-based boards (https://github.com/Xilinx/linux-xlnx/blob/xlnx_rebase_v4.19/arch/arm/boot/dts/zynq-7000.dtsi): No mention of Coresight components at all 😨

Which in not the case in the master branch (https://github.com/Xilinx/linux-xlnx/blob/master/arch/arm/boot/dts/zynq-7000.dtsi):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

# [...]
		etb@f8801000 {
			compatible = "arm,coresight-etb10", "arm,primecell";
			reg = <0xf8801000 0x1000>;
			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
			in-ports {
				port {
					etb_in_port: endpoint {
						remote-endpoint = <&replicator_out_port1>;
					};
				};
			};
		};

		tpiu@f8803000 {
			compatible = "arm,coresight-tpiu", "arm,primecell";
			reg = <0xf8803000 0x1000>;
			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
			in-ports {
				port {
					tpiu_in_port: endpoint {
						remote-endpoint = <&replicator_out_port0>;
					};
				};
			};
		};

		funnel@f8804000 {
			compatible = "arm,coresight-static-funnel", "arm,primecell";
			reg = <0xf8804000 0x1000>;
			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";

			/* funnel output ports */
			out-ports {
				port {
					funnel_out_port: endpoint {
						remote-endpoint =
							<&replicator_in_port0>;
					};
				};
			};
# [...]

This is mainly due to the fact that the kernel version in the meta-xilinx layer has been updated later in the master branch:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

commit 48998ea5b79af13fb1b181037cd3a12990463e8a
Author: Sai Hari Chandana Kalluri <chandana.kalluri@xilinx.com>
Date:   Fri Feb 21 11:20:37 2020 -0800

    Update KERNEL_VERSION to 5.4

    Update KERNEL_VERSION to 5.4

    Signed-off-by: Sai Hari Chandana Kalluri <chandana.kalluri@xilinx.com>

diff --git a/meta-xilinx-bsp/recipes-kernel/linux/linux-xlnx_2020.1.bb b/meta-xilinx-bsp/recipes-kernel/linux/linux-xlnx_2020.1.bb
index 58f163c..2b8763a 100644
--- a/meta-xilinx-bsp/recipes-kernel/linux/linux-xlnx_2020.1.bb
+++ b/meta-xilinx-bsp/recipes-kernel/linux/linux-xlnx_2020.1.bb
@@ -1,4 +1,4 @@
-LINUX_VERSION = "4.19"
+LINUX_VERSION = "5.4"
 KBRANCH ?= "xlnx_rebase_v4.19"
 SRCREV ?= "b983d5fd71d4feaf494cdbe0593ecc29ed471cb8"

Furthermore, this has been updated only in the 5.6 release of the Linux kernel: https://git.kernel.org/pub/scm/linux/kernel/git/stable/linux.git/commit/?id=9b0b308a1586f620a49c50605ae8abf509190661&h=master

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150

--- a/arch/arm/boot/dts/zynq-7000.dtsi
+++ b/arch/arm/boot/dts/zynq-7000.dtsi
@@ -59,6 +59,39 @@
 		regulator-always-on;
 	};

+	replicator {
+		compatible = "arm,coresight-static-replicator";
+		clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+		clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+
+		out-ports {
+			#address-cells = <1>;
+			#size-cells = <0>;
+
+			/* replicator output ports */
+			port@0 {
+				reg = <0>;
+				replicator_out_port0: endpoint {
+					remote-endpoint = <&tpiu_in_port>;
+				};
+			};
+			port@1 {
+				reg = <1>;
+				replicator_out_port1: endpoint {
+					remote-endpoint = <&etb_in_port>;
+				};
+			};
+		};
+		in-ports {
+			/* replicator input port */
+			port {
+				replicator_in_port0: endpoint {
+					remote-endpoint = <&funnel_out_port>;
+				};
+			};
+		};
+	};
+
 	amba: amba {
 		compatible = "simple-bus";
 		#address-cells = <1>;
@@ -365,5 +398,107 @@
 			reg = <0xf8005000 0x1000>;
 			timeout-sec = <10>;
 		};
+
+		etb@f8801000 {
+			compatible = "arm,coresight-etb10", "arm,primecell";
+			reg = <0xf8801000 0x1000>;
+			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+			in-ports {
+				port {
+					etb_in_port: endpoint {
+						remote-endpoint = <&replicator_out_port1>;
+					};
+				};
+			};
+		};
+
+		tpiu@f8803000 {
+			compatible = "arm,coresight-tpiu", "arm,primecell";
+			reg = <0xf8803000 0x1000>;
+			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+			in-ports {
+				port {
+					tpiu_in_port: endpoint {
+						remote-endpoint = <&replicator_out_port0>;
+					};
+				};
+			};
+		};
+
+		funnel@f8804000 {
+			compatible = "arm,coresight-static-funnel", "arm,primecell";
+			reg = <0xf8804000 0x1000>;
+			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+
+			/* funnel output ports */
+			out-ports {
+				port {
+					funnel_out_port: endpoint {
+						remote-endpoint =
+							<&replicator_in_port0>;
+					};
+				};
+			};
+
+			in-ports {
+				#address-cells = <1>;
+				#size-cells = <0>;
+
+				/* funnel input ports */
+				port@0 {
+					reg = <0>;
+					funnel0_in_port0: endpoint {
+						remote-endpoint = <&ptm0_out_port>;
+					};
+				};
+
+				port@1 {
+					reg = <1>;
+					funnel0_in_port1: endpoint {
+						remote-endpoint = <&ptm1_out_port>;
+					};
+				};
+
+				port@2 {
+					reg = <2>;
+					funnel0_in_port2: endpoint {
+					};
+				};
+				/* The other input ports are not connect to anything */
+			};
+		};
+
+		ptm@f889c000 {
+			compatible = "arm,coresight-etm3x", "arm,primecell";
+			reg = <0xf889c000 0x1000>;
+			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+			cpu = <&cpu0>;
+			out-ports {
+				port {
+					ptm0_out_port: endpoint {
+						remote-endpoint = <&funnel0_in_port0>;
+					};
+				};
+			};
+		};
+
+		ptm@f889d000 {
+			compatible = "arm,coresight-etm3x", "arm,primecell";
+			reg = <0xf889d000 0x1000>;
+			clocks = <&clkc 27>, <&clkc 46>, <&clkc 47>;
+			clock-names = "apb_pclk", "dbg_trc", "dbg_apb";
+			cpu = <&cpu1>;
+			out-ports {
+				port {
+					ptm1_out_port: endpoint {
+						remote-endpoint = <&funnel0_in_port1>;
+					};
+				};
+			};
+		};
 	};
 };

As a consequence, we need to clone the master branch of linux-xlnx in order to get a correct device tree. This can be done by modifying a parameter in machine-xilinx-default.inc:

1
2
3

# Kernel Configuration
- PREFERRED_PROVIDER_virtual/kernel ??= "linux-xlnx"
+ PREFERRED_PROVIDER_virtual/kernel ??= "linux-xlnx-dev"

This information was given in a kernel recipe file of the meta-xilinx layer.

Recompiling everything…

Now that we’ve found when and where the device tree has been updated with Coresight components, we have two tasks to do:

  • Recompile a default core-image-minimal with linux-xlnx-dev kernel.
  • Customize linux-xlnx-dev in order to include Coresight drivers.

Then, once everything is copied on the SD card:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

Starting kernel ...

Booting Linux on physical CPU 0x0
Linux version 5.4.0-xilinx-dev (oe-user@oe-host) (gcc version 9.2.0 (GCC)) #1 SMP PREEMPT Mon Jul 6 16:40:45 UTC 2020
[...]
coresight etm0: PTM 1.0 initialized
coresight etm1: PTM 1.0 initialized
fpga_manager fpga0: Xilinx Zynq FPGA Manager registered
[...]
Starting syslogd/klogd: done

Poky (Yocto Project Reference Distro) 3.0.3 zedboard-zynq7 /dev/ttyPS0

zedboard-zynq7 login: root
root@zedboard-zynq7:~# ls /sys/bus/coresight/devices/
etb0         etm0         etm1         funnel0      replicator0  tpiu0

Yay, we can see Coresight components on the Zedboard! 🕶️

https://asciinema.org/a/345848.png
